Features
Outdoor Pan/Tilt 4G LTE Camera
- No Wi-Fi, No Limit: Connects through 4G LTE networks, ideal for places where constant Wi-Fi is not available.
- 360° All-Round Protection: Provides 360° horizontal & 130° vertical viewing range, eliminating blind spots.
- Free AI Detection: Smart AI identifies people, pets, and vehicles, sending instant notifications through the Tapo app.
- 1080P Full HD: Reveals sharp images and vivid details with 1920 × 1080 pixels.
- Starlight Color Night Vision: Captures vibrant images in low light up to 20 meters away.
- IP66 Weatherproof: Works well in rain, dust, and heat, offering excellent waterproof and dustproof performance for outdoor scenarios.
- Sound and Light Alarm: Craft your own audio alarm to deter unwelcome intruders and tailor the intensity of the dual spotlights.
- Local and Cloud Storage: Save all your important moments to a microSD card (up to 512GB) or subscribe to Tapo Care for cloud service.
- Dual Mode Flexibility with 4G or PoE: Power your camera with a DC adapter or Ethernet cable featuring PoE technology.
- No Wi-Fi, No Limits
- Backed by TP-Link's 4G networking expertise, Tapo C501GW reliably connects through 4G LTE networks, ideal for locations like garages, vacation homes, warehouses, and farms where constant Wi-Fi is unavailable. Simply plug in a 4G SIM card (not included) for an easy, hassle-free internet setup.

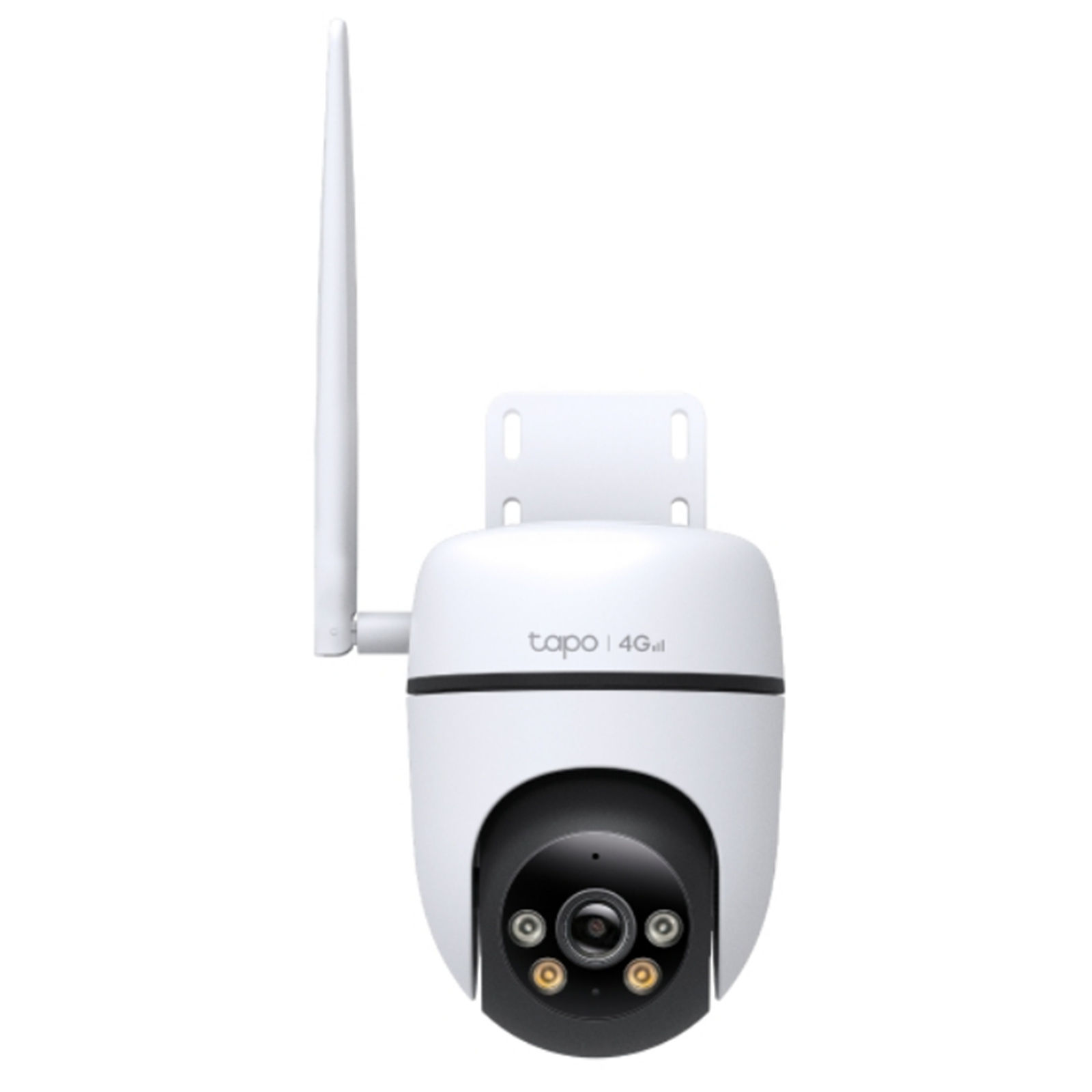

TP Link Tapo C501GW 2MP/1080P Outdoor PT 4G LTE Camera
Requires 4G Sim Card
CAMERA
Image Sensor
1/2.9" CMOS Sensor
Lens
Focal Length: 3.17 mm
Aperture: F1.65Field of View
122° (Diagonal), 105°(Horizontal), 59°(Vertical)
Motion Range
Pan Mechanical Range: 340° (360° Pan Coverage)
Tilt Mechanical Range: 60° (130° Tilt Coverage)Night Vision
850 nm IR LED (98 ft / 29.9 m), starlight color night vision
Interface & Button
1× DC Port
1× Ethernet Port, PoE
1× RESET Button
1× MicroSD Card Slot (Up to 512GB)
1× Nano-SIM Card SlotVIDEO & AUDIO
Maximum Resolution
1920 × 1080 px
Frame Rate
30 fps
Video Compression
H.264
Live View
Yes
Audio Input & Output
Built-in Microphone and Speaker
Audio Communication
Two-Way Audio with Noise Cancellation
Siren Volume
99 dB (Level measured at 4-inch/10-cm distance)
STORAGE
Local Storage
MicroSD Card Slot on Camera (Up to 512 GB)
Cloud Storage
Tapo Care Cloud Storage Services (Subscription required)
DETECTION and NOTIFICATIONS
AI Detection
Motion Detection
Person Detection
Pet Detection
Vehicle Detection
Tamper Detection
Line-Crossing Detection
Meow Detection
Bark Detection
Glass-Breaking DetectionActivity Zones
Yes
Output Notification
System Notification
System Notification with Snapshot (Tapo Care Services)NETWORK
Network Connectivity
3G/4G LTE/LAN Cable
RTSP
Yes
ONVIF
Yes
4G
Frequency
LTE-FDD: B1/3/5/7/8/20/28, LTE-TDD: B38/40/41
POWER
Power Source
12V DC Power Adapter
PoE: 802.3 af/atInput Voltage
100-240 V, 50/60 Hz
Output Voltage
DC Power:12V, 1A
GENERAL
Smart Integration
Google Assistant, Amazon Alexa
Weather Resistance
IP66
System Requirements
Tapo App: iOS 9.0 or higher, Android 4.4 or higher
Mounting Options
Ceiling-Mounted
Wall-Mounted
Pole-Mounted (Pole-Mounting loops required but not included)Operating Temperature
-30?~60?
Storage Temperature
-40?~60?
Operating Humidity
10%~90% RH, Non-condensing
Storage Humidity
0~90% RH, Non-condensing
Dimensions
Camera Dimensions: 5.15× 3.31×4.57 in (130. 8× 84.0 × 116.1 mm)
Camera Dimensions with included antennas and bracket
5.5 × 4.03 × 9.22 in (139.8 × 102.3 × 234.2 mm)Package Contents
Tapo C501GW Camera
Detachable Antenna
DC Power Adapter
Mounting Template
Mounting Bracket
Mounting Anchors
Bracket Screws
Mounting Screws
Waterproof Seal
Waterproof Cable Attachments
Quick Start Guide
